R12-LBP COMPRESSOR PERFORMANCE PARAMETER

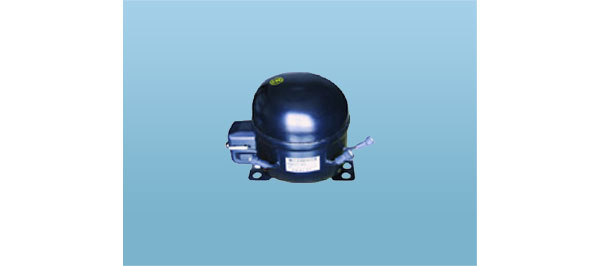

Our FN series compressor belongs to the hermetical piston rod type by electromotor driving. It adopts PTC starter and over loading protecting. Widely used for refrigerator systems.
Feature：
1.Excellent starting performance
2.Small space, light weight
3.Reasonable structure and compact size
4.-Low noise, little vibration
5.High efficiency, energy saving
6.Stable performance, high security
7.Good adaptability of voltage
8.Excellent refrigeration
9.Wild range of refrigerant capacity
|
Series
|
Model
|
Displacement(cm)
|
Capacity （W）
|
Input power (W）
|
C.O.P
|
Current （A）
|
Cooling Type
|
Motor Type
|
HP
|
| FN Series 220V -50/60Hz |
FN43
|
4.3
|
96
|
103
|
0.93
|
0.82
|
ST
|
RSIR
|
1/6-
|
|
FN51
|
5.1
|
123
|
115
|
1.07
|
0.85
|
ST
|
RSIR
|
1/6
|
|
FN57
|
5.7
|
139
|
127
|
1.09
|
0.97
|
ST
|
RSIR
|
1/6+
|
|
FN66
|
6.6
|
157
|
148
|
1.06
|
1.1
|
ST
|
RSIR
|
1/5
|
|
FN77
|
7.7
|
185
|
176
|
1.05
|
1.2
|
ST
|
RSIR
|
1/4-
|
|
FN86
|
8.6
|
195
|
180
|
1.08
|
1.3
|
ST
|
RSIR
|
1/4+
|
|
FN91
|
9.1
|
215
|
195
|
1.10
|
1.4
|
ST/OC
|
RSIR
|
1/3
|
|
FN110
|
11.0
|
265
|
240
|
1.10
|
1.6
|
ST/OC
|
RSIR
|
1/2
|
| FN Series 240V/50Hz |
FN43M
|
4.3
|
98
|
104
|
0.94
|
0.83
|
ST
|
RSIT
|
1/6-
|
|
FN51M
|
5.1
|
120
|
109
|
1.1
|
0.84
|
ST
|
RSIR
|
1/6
|
|
FN57M
|
5.7
|
140
|
121
|
1.11
|
0.96
|
ST
|
RSIR
|
1/6+
|
|
FN66M
|
6.6
|
158
|
149
|
1.08
|
1.05
|
ST
|
RSIR
|
1/5
|
|
FN77M
|
7.7
|
180
|
163
|
1.1
|
1.25
|
ST
|
RSIR
|
1/4-
|
|
FN86M
|
8.6
|
190
|
165
|
1.15
|
1.3
|
ST
|
RSIR
|
1/4+
|
|
FN91M
|
9.1
|
210
|
182
|
1.15
|
1.32
|
ST/OC
|
RSIR
|
1/3
|
|
FN110M
|
11.0
|
260
|
220
|
1.18
|
1.35
|
ST/OC
|
RSIR
|
1/2
|
| FN Series 115V/60Hz |
FN43U6
|
4.3
|
110
|
96
|
1.15
|
0.8
|
ST
|
RSIR
|
1/6-
|
|
FN51U6
|
5.1
|
140
|
122
|
1.15
|
0.92
|
ST
|
RSIR
|
1/6
|
|
FN57U6
|
5.7
|
154
|
131
|
1.18
|
1.02
|
ST
|
RSIR
|
1/6+
|
|
FN66U6
|
6.6
|
182
|
152
|
1.2
|
1.05
|
ST
|
RSIR
|
1/5
|
|
FN77U6
|
7.7
|
205
|
171
|
1.2
|
1.15
|
ST
|
RSIR
|
1/4-
|
|
FN86U6
|
8.6
|
216
|
183
|
1.18
|
1.28
|
ST
|
RSIR
|
1/4+
|
|
FN91U6
|
9.1
|
237
|
201
|
1.18
|
1.3
|
ST/OC
|
RSIR
|
1/3
|
|
FN110U6
|
11.0
|
290
|
242
|
1.2
|
1.35
|
ST/OC
|
RSIR
|
1/2
|
| FN Series 110V/60Hz |
FN43T6
|
4.3
|
122
|
111
|
1.1
|
0.85
|
ST
|
RSIR
|
1/6-
|
|
FN51T6
|
5.1
|
145
|
125
|
1.16
|
0.93
|
ST
|
RSIR
|
1/6
|
|
FN57T6
|
5.7
|
155
|
131
|
1.18
|
1.03
|
ST
|
RSIR
|
1/6+
|
|
FN66T6
|
6.6
|
185
|
154
|
1.2
|
1.05
|
ST
|
RSIR
|
1/5
|
|
FN77T6
|
7.7
|
210
|
175
|
1.2
|
1.25
|
ST
|
RSIR
|
1/4-
|
|
FN86T6
|
8.6
|
220
|
186
|
1.18
|
1.3
|
ST
|
RSIR
|
1/4+
|
|
FN91T6
|
9.1
|
240
|
196
|
1.22
|
1.35
|
ST/OC
|
RSIR
|
1/3
|
|
FN110T6
|
11.0
|
293
|
240
|
1.22
|
1.4
|
ST/OC
|
RSIR
|
1/2
|
| FN Series 100V/60Hz |
FN43J6
|
4.3
|
107
|
112
|
0.96
|
0.9
|
ST
|
RSIR
|
1/6-
|
|
FN51J6
|
5.1
|
135
|
129
|
1.05
|
0.98
|
ST
|
RSIR
|
1/6
|
|
FN57J6
|
5.7
|
150
|
139
|
1.08
|
1.02
|
ST
|
RSIR
|
1/6+
|
|
FN66J6
|
6.6
|
163
|
151
|
1.08
|
1.03
|
ST
|
RSIR
|
1/5
|
|
FN77J6
|
7.7
|
180
|
164
|
1.1
|
1.05
|
ST
|
RSIR
|
1/4-
|
|
FN86J6
|
8.6
|
190
|
176
|
1.08
|
1.12
|
ST
|
RSIR
|
1/4+
|
|
FN91J6
|
9.1
|
213
|
194
|
1.1
|
1.25
|
ST/OC
|
RSIR
|
1/3
|
|
FN110J6
|
11.0
|
262
|
238
|
1.1
|
1.35
|
ST/OC
|
RSIR
|
1/2
|
|
Test Conditions(ASHRAE)
|
|
|
|
Conversion Table:
|
|
|
Evaporting Temp.:-23.3°C
|
|
|
|
Kcal/h×1.163＝W
|
|
|
Ambient Temp.:32.2°C
|
|
|
|
Kcal/h×3.698＝Btu/h
|
|
|
Suction Temp.:32.2°C
|
|
|
|
W×3.412＝Btu/h
|
|
|
Subcooling Temp.:32.2°C
|
|
|
|
W×0.864＝Btu/h
|
|
|
Condensing Temp.:54.4°C
|
|
|
|
|
|
|
